Zhongtuo Roll Forming Machinery Co., ltd

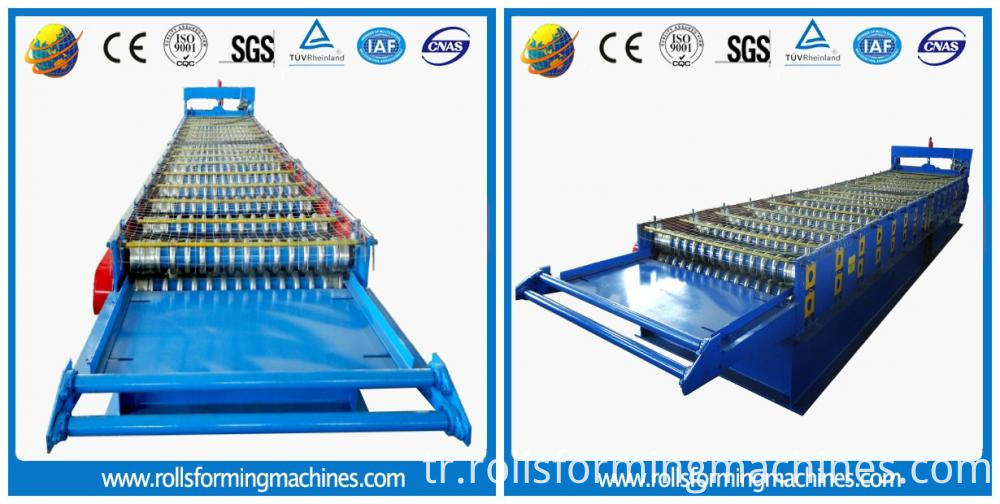

Roof Roll Forming Machine The Newest
Roof Roll Forming Machine The Newest
Roof Roll Forming Machine The Newest
Roof Roll Forming Machine The Newest

Roof Roll Forming Machine The Newest

Unit Price: USD 24990 - 5999 / Set/Sets
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-004-014

    Certification: CE, ISO

    Demoulding: Slide

    Heating System: Electric

    Function: Abrasion Resistance

    Automatic Grade: Semiautomatic

    Condition: New

    Customized: Customized

    Warranty: 12 Months

    Thicknesss: 0.8-1.2mm

    Width: 1000.1200.1220.914.1250mm

    Frame Of Machine: 400 H Beam

Additional Info

    Packaging: as customer's requirement

    Productivity: 25m/min

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: cangzhou

    Supply Ability: 30sets/month

    Certificate: ce/iso9001

Product Description

Roof Roll Forming Machine Manufacturer


Product description

This kind of Corrugated Roof Sheet Making Machine used in simple house, steel plants and other wall board production.The miximum speed of Roofing Sheet Roll Forming Machine can be 45m/min,greatly improving the production efficiency.The finished roof sheet are widely used in some temporary construction as wall or roof panel,for example .The sheet or panel is light as well as low cost but high strength, short building period, and re-cycle use.

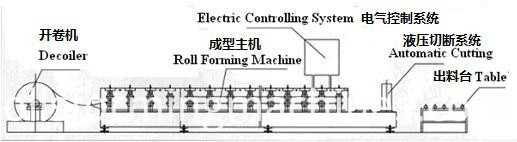

Working flow of Sheet Roll Forming Machine

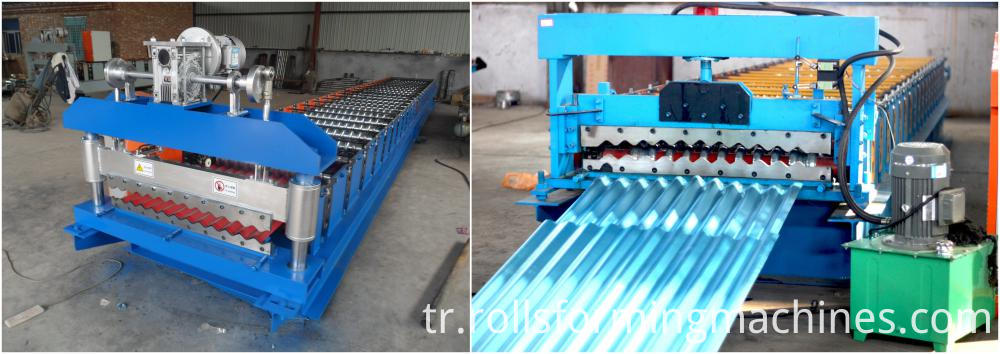

Roofing Sheet Roll Forming Machine



Specification of Sheet Roll Forming Machine

Material Type:GI/PPGI/AL

Material width:1000/1200/1220/1250mm(customized)

Material Thickness:0.25-0.8mm

Sheet length: Any length

Length Tolerance:±2mm/6m

Working Speed:8-25m/min (10 piece per min as 8 feet per piece,standard machine)

Control System:Mitsubishi/Siemens PLC& transducer(customized)

Total Power:About 5.5KW

Total Weight:About 4T(up to the final design)

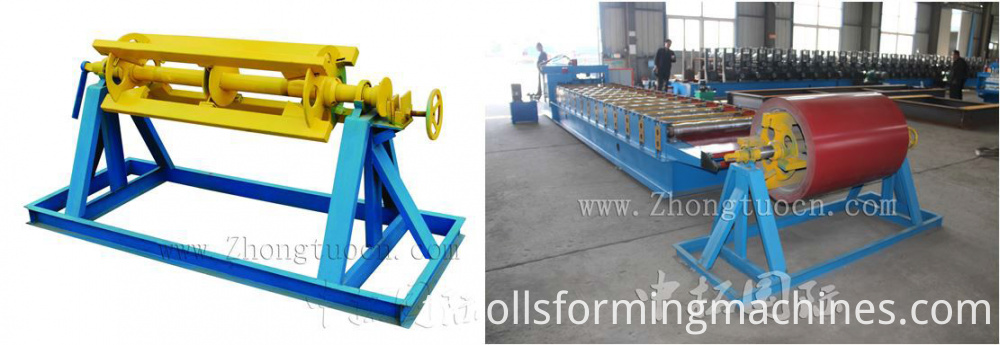

Un-coiler System of Roof Roll Forming Machine

Roofing Sheet Roll Forming Machine 01
Usage: It is used to support the steel coil and uncoil it in a turntable way..Passive uncoil pulled by roll forming system

Loading-capacity:5T

Uncoiling-width:1000/1200/1250mm

Inner-diameter: 450-550mm

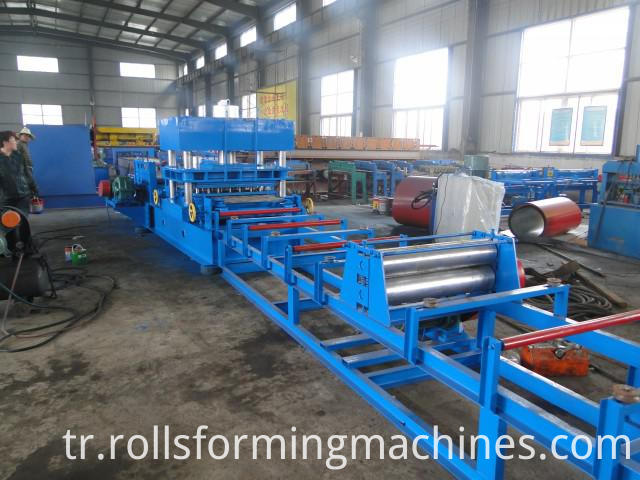

Entry Beach of Roofing Sheet Roll Forming Machine

Roofing Sheet Roll Forming Machine 02
Usage:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate panel.

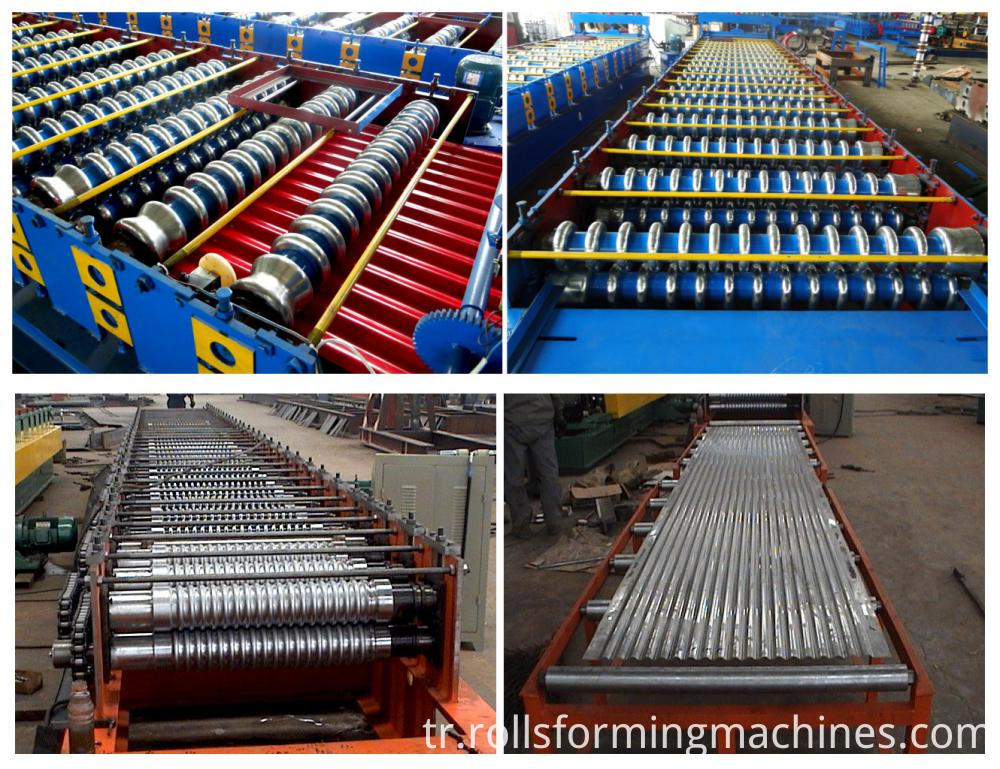

Main Roll forming machine of Roofing Sheet Roll Forming Machine

Roofing Sheet Roll Forming Machine 03
Usage :In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Frame : 350 H steel

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Length of the main part:8650*1650*1500mm

Voltage:380V/50HZ3Phase

Roller fixer : middle plate

Material of shafts: 45#steel

Diameter of shafts: φ80mm

Number of rollers : 18 rollers

Shearing Mechanism of Sheet Roll Forming Machine

Roofing Sheet Roll Forming Machine 04
Usage :It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Function: Automatic cutting controlled by PLC.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Products receiving tables of Sheet Roll Forming Machine

Roofing Sheet Roll Forming Machine 05

Looking for ideal Roofing Sheet Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Sheet Roll Forming Machine are quality guaranteed. We are China Origin Factory of Roof Roll Forming Machine. If you have any question, please feel free to contact us.
