Zhongtuo Roll Forming Machinery Co., ltd

Metal Frame Doors Roll Forming Machine
Metal Frame Doors Roll Forming Machine
Metal Frame Doors Roll Forming Machine
Metal Frame Doors Roll Forming Machine

Metal Frame Doors Roll Forming Machine

Unit Price: USD 16500 - 6800 / Set/Sets
Payment Type: T/T,L/C,D/A,D/P,Western Union
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-005-06

Additional Info

    Packaging: nake package

    Productivity: 30 sets/month

    Brand: ZHONGTUO

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE, ISO9001

Product Description

Metal Frame Doors Roll Forming Machine:

Metal Frame Doors Roll Forming Machine is design to roll cold galvanized steel with thickness from 0.4mm to 1.5 mm. steel & metal door frame machine can produce two

types of frame, one is use for shutter door, the shape likes U or similar, another one is used for door panel.

Metal Frame Doors Roll Forming Machineconsists of decoile,-Feeding and Leveler, roll forming ,cutting part, runout table, PLC control box and hydraulic station.

The production Process:

De-coiler----Feeding and Leveler---Roll Forming---Cutting Part---Runout Table

Process

Composition of Steel Door Frame Roll Forming Machine:

1. De-coiler

  • Loading capacity:1.5T

  • Uncoiling width:300mm (according to the profile drawing)

  • Inner diameter450-550mm

un-coiler

2. Feeding and Leveler

  • Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
Door Frame Machine

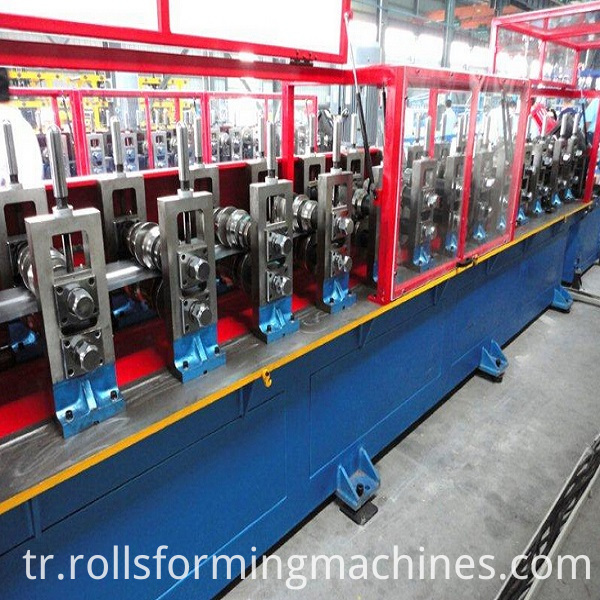

3. Roll Forming

  • Roller material :45# steel, surface hard chromium plating.
  • Shaft material : 45# steel with tempering
  • Outer diameter of shaft :70mm
  • frame : 400H steel
  • Voltage: 380v,50Hz,3 phase As customer`s need
  • Dimensions:15400 * 1800 *1800mm Final size depend on the design
  • Main power: 8.5-15kw Depend on the thickness of material and size of machine
  • Forming steps rollers: 12-20 stations Final rollers depend on the design
  • Speed :8-15m/min

Frame Doors Roll Forming Machine

Metal Frame Doors Roll Forming Machine

4.Cutting Part

  • Material of blades : Gcr12MoV quenched

    Metal Frame Doors Roll Forming Machine


Sample of shutter door:

door frame (2)

Our service:

1. Installation and training :
a.If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine , and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service :
a.One year guarantee. b.24 hours technical support by email or calling



Looking for ideal Frame Doors Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Metal Frame Doors Machine are quality guaranteed. We are China Origin Factory of Door Frame Machine. If you have any question, please feel free to contact us.

Product Categories : Door Frame Roll Forming Machine
