Zhongtuo Roll Forming Machinery Co., ltd

C/U light steel channel roll forming machine
C/U light steel channel roll forming machine
C/U light steel channel roll forming machine
C/U light steel channel roll forming machine
C/U light steel channel roll forming machine

C/U light steel channel roll forming machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: zt-010

    Length Of The Main Part: 9500-1650-1500mm

    Weight Of Main Part: 6.8 T

    Voltage: As Customer Required

    Roller Fixer: Middle Plate Welded

    Frame: Guide Pillar And The Thickness Is 50mm

    Frame Thickness: 25mm

    Drive Mode: Gear

    Material Of Rollers: 45# Steel,surface Hard Chromium Plating

    Material Of Shafts: 45# Steel

Additional Info

    Productivity: 8-22m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ISO9001, CE

    Port: TIANJIN

Product Description

C/ U/ L/W light gauge steel channel frame Roll Forming Machine

Our C/ U/ L/W light gauge steel channel frame roll forming machine produce like Stud, track, Omega, Angle as so on. This C/ U/ L/W channel machine/ stud and track machine/ Drywall Profile Roll Forming Machine working space are smaller than two seperate machines. And at the same time the price is also cheaper than two seperate machines.

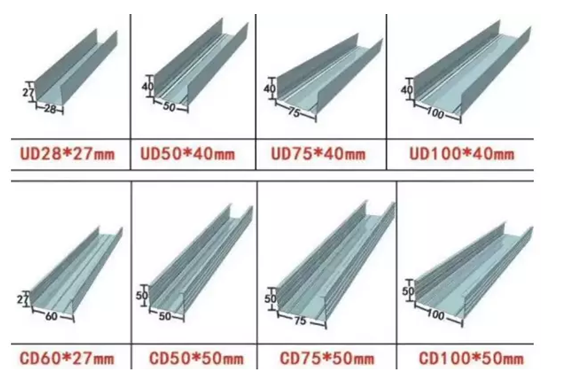

Take the following drawing profiles and then you can understand what we refer to:

1



C/ U/ L/W light gauge steel channel frame roll forming machine feature:

1. According to the market, now our light gauge steel channel frame roll forming machine have the following speed options: like 25 meter per minute, 50 meter per minute and 80 meter per minute.

2. For the U channel, normall speaking it has fully autoamtic size changing and manual sizes changing by the adjustments of the spacer.

3. One machine allows you to make many sizes and shapes.


Here is the machine picture for your reference:

2


No.

c u l w light gauge steel channel frame roll forming machine for roof

1

Suitable material

PPGI/Aluminium sheet/galvanized sheet/various sheet plates

2

Thickness of Coil Sheet

0.3-0.8mm

3

Coil width

as customer's profile drawing requirement

4

Effective width

as customer's profile drawing requirement

5

Material of main frame

welded by 6mm steel plate

6

Diameter of Soild shaft

40mm, high grade 45# steel

7

Roller

Cr12

8

Thickness of middle plate

Memorial archway

9

Forming station

12 rows

10

Drive type

Gear

11

Power of main motor

5.5 kw, Lichao, Shanghai, with reducer

12

Servo motor

1.5KW

13

Forming speed

About 25-30m/min

14

Hydraulic pump station

5.5 kw, 40# hydraulic oil

15

PLC

DELTA(TAIWAN)/Mitsubishi

16

Material of cutting blades

Cr 12, quenching 58-62

17

Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy ±1mm, far better than industrial standard ±3mm.

18

Switch

CHNT

19

Frequency changer

Delta,Taiwan


More detail pictures of C/ U/ L/W light gauge steel channel frame roll forming machine for your reference:

3




FAQ:

1.Does one C/ U/ L/W light gauge steel channel frame roll forming machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal C/ U/ L/W light gauge steel channel frame roll forming machine manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.
