Shutter Slat Roll Forming Machine
Shutter Slat Roll Forming Machine is a special type of roll forming machine, producing shutter door panel or slat standard and elegant, that shows good performance and using trends in the future sufficiently.This kind of roll forming machine is widely used for making various metal,wall panels and roof panels for steel constructions, steel structure projects and containment systems etc. Slat Shutter Roller Door Forming Machine is an advanced-technology and practical usable system.
Main Techinal Data
2.Total weight:about 3ton
3.Control system:computer control
4.Main forming unit driving motor power:5.5kw
5.Material of rollers:bearing steel with quenched treatme
6.Material of roller shafts:45#steel
7.Step of rollers:14steps
9.Thickness to be rolled:0.5-1.5mm
Components of Line
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
a. Coil inner diameter: 450-550mm
b. Coil max width: 300mm
c. Max carrying capacity: 3000kg
(you can choose this part with Electric or hydraulic)
2. Entry leveling and punching dots
This part will level coil to make sure it is neat clean and straight.
3. Roll forming machine
a. Number of forming steps: 14 stations
b. Shaft material: 45# steel with quenched treatment, precision machined,
The diameter: ￠56mm
c. Roller material: bearing steel with quenched treatment
d. Transport: by gear
e. Forming speed: 10-15m/min
g.Voltage:380v, 50Hz,3 phase
h. Structure: independent stand

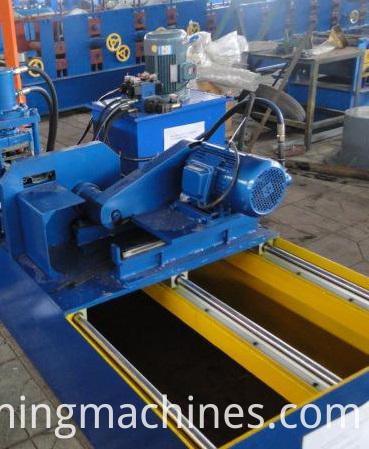

4. Shearing system
Servo flying and tracking cutting saw, the cutting saw will adjust the cutting speed and location according to the main machine speed. By this method, the machine working speed will be same as the main machine accordingly. The cutting plate we take the best material for cutting it in high speed and beautiful cutting scare.
The material of blade: Cr12Mov, Hardening HRC 58-62℃
5. Hydraulic station
Hydraulic motor Power: 3kw
Hydraulic oil: 46#
Hydraulic pressure : 12Mpa
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.
6. PLC station
PLC control system, we will take Panasonic or you can specify the one you like. Different with normal machine, PLC programmed will add servo cutting saw control parameters.
7. Run out table
It adopts welded steel and supported roller to transmit the products.
