Zhongtuo Roll Forming Machinery Co., ltd

Roofing Colored Glazed Tile Cold Roll Forming Machine
Roofing Colored Glazed Tile Cold Roll Forming Machine
Roofing Colored Glazed Tile Cold Roll Forming Machine
Roofing Colored Glazed Tile Cold Roll Forming Machine
Roofing Colored Glazed Tile Cold Roll Forming Machine

Roofing Colored Glazed Tile Cold Roll Forming Machine

Unit Price: USD 10500 - 6500 / Set/Sets
Payment Type: T/T,L/C,D/A,D/P,Western Union,O/A
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: Zt-003-146

Additional Info

    Packaging: nude packing

    Productivity: 8-25 m/min

    Brand: zhongtuo

    Transportation: Ocean

    Place of Origin: cangzhou

    Supply Ability: 20sets/month

    Certificate: CE\ISO9001

Product Description

Roofing Colored Glazed Tile Cold


Roll Forming Machine

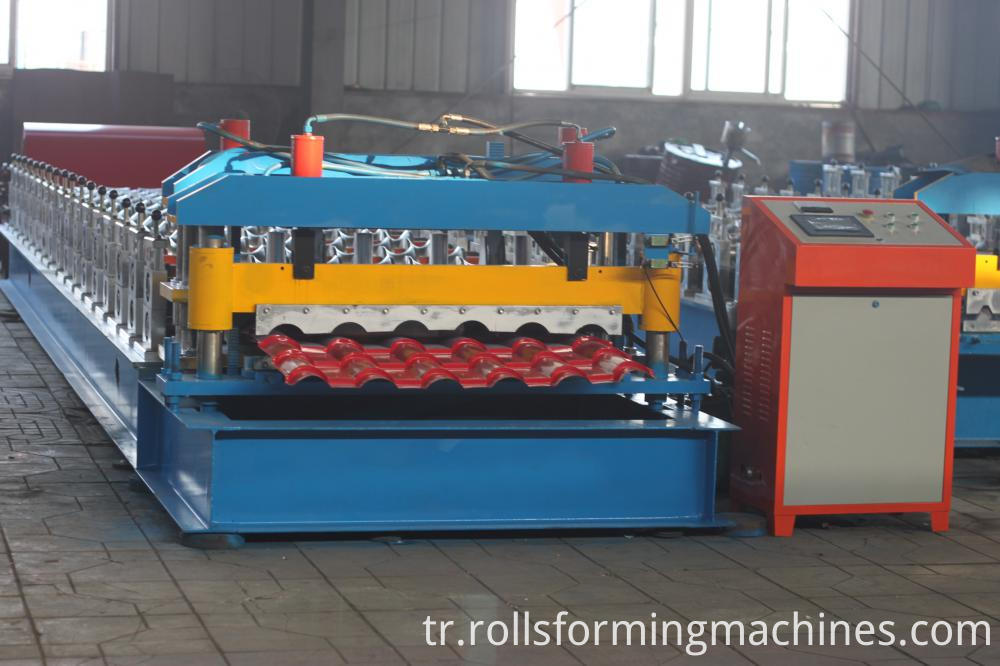

IMG_0806

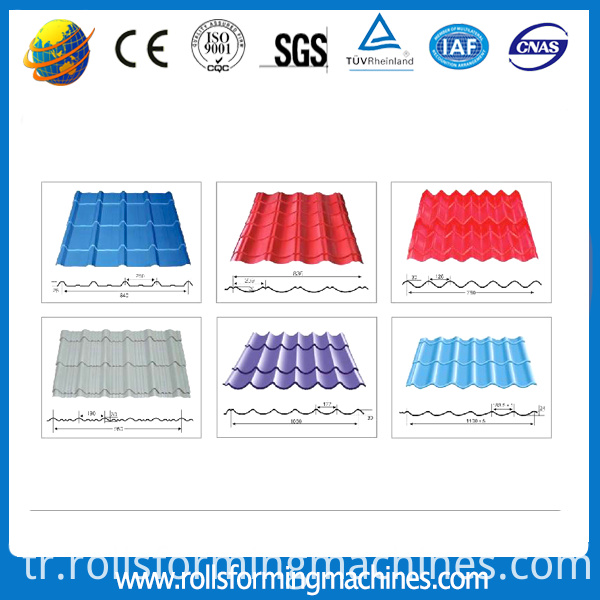

Details of Glazed Tile Roll Forming Machine

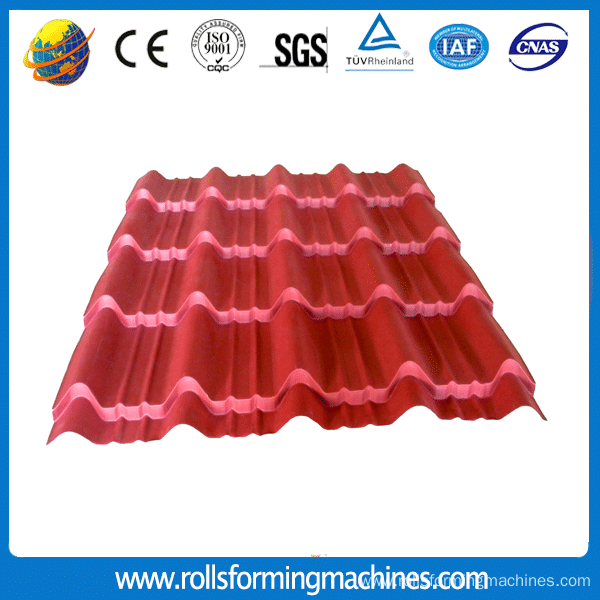

Glazed tile roll forming machine (4)

Glazed tile roll forming machine (19)

Components of production line:

1. Manual Decoiler: set 1

2. Punching part: set 1

3. Main forming machine: set 1

4. PLC control sysem: set 1

5. Hydraulic pump station: set 1

6. Post cut: set 1

7. Electric motor: set 1

8. Output table: set 1

Parameters

1.Suitable Material

Type: GI/PPGI/AL

Width: 1000/1200/1220/1250mm (Custom)

Thickness: 0.40-0.70mm

2. Product Specifications: Length: Any length

Length Tolerance: ±2mm/6m

3.Working Speed: 25 m/min (10 piece per min as 8 feet per piece) (Standard machine)

4. Control System :Mitsubishi/Siemens PLC& transducer (Custom)

5. Total Power: About 12KW

6. Total Weight : About 10.5T (Up to final design)


Glazed tile roll forming Machine Forming Equipment

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving

Control System: PLC with touch screen

Way Of Drive: 1.2 inch single chain

Roll material: 45# high grade steel

Shaft material: 45# high grade steel

Frame material: 300 H-high grade steel

Cutting blade material: Cr 12 high grade steel

Cutting type: hydraulic cutting

Lanugage system: Chinese ,English ,

Size of container: GP

Feature: high speed, low energy consumption

Packaging Details:

1. one 40ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container.

Delivery Detail:

45 days after receipt of buyer's deposit

shipping

Market

At recent years,large of products were sold to Russia,India,England,Australia,America,Kazakhstan,Malaysia,Nigeria,

Rumamia and Albania etc,more than 50 countries and regious.

FAQ:

1. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

2. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

3. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

4. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

5. You are trade company or factory?

We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.


Looking for ideal Glazed Tile Machines Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Colored Roofing Machine are quality guaranteed. We are China Origin Factory of Colored Glazed Tile Machine. If you have any question, please feel free to contact us.

Product Categories : Roofing Sheet Roll Forming Machine > Glazed Tile and Ridge Cap Roll Forming
