Zhongtuo Roll Forming Machinery Co., ltd

Roll Up Shutter Door Forming Machine
Roll Up Shutter Door Forming Machine
Roll Up Shutter Door Forming Machine
Roll Up Shutter Door Forming Machine
Roll Up Shutter Door Forming Machine

Roll Up Shutter Door Forming Machine

Payment Type: L/C,T/T,D/P,D/A
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-004-D01

    Material: Stainless Steel

    Thickness: 40mm

    Opening Style: Rolling

    Opening Type: Power Driven

    Motor Shaft: 4.5m

    Power: 100W, 5.5kw

    Output Torque: 600N

    Door Panel Pattern: Linear

    Color: Brown

    Surface Finishing: Finished

    Speed: 10-15m/min

    Shaft Diameter: ¢56mm

    Roller Station: 14steps

    Shaft Material: 45#steel

    Roller Material: :45#steel,quenched HRC58-62,coated With Rigid Chro

Additional Info

    Packaging: As Customer's Requirement

    Productivity: 10-15m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land

    Place of Origin: Made in China

    Supply Ability: 20set per Month

    Certificate: ET, ISO9001

Product Description

Roll Up Shutter Door Forming Machine

Product Destription

The Roll Up Shutter Door Forming Machine can manufacture the galvanized roller shutter door slat. Produced products are in fashionable design and are widely used.Roll Shutter Door Slat Roll Forming Machine with the highest security in rolling fire doors, rolling steel doors, fire doors, rolling shutter, offshore rolling doors, offshore rolling fire doors, storm doors.

Quickly information:

1.Control system:computer control

2.Main forming unit driving motor power:5.5kw

3.Material of rollers:45#steel,quenched HRC58-62,coated with rigid chrome.

4.Material of roller shafts:45#steel

5.Step of rollers:14steps

6.Forming speed:10-15m/min

7.Thickness to be rolled:0.5-1.5mm

Components of Line

1. Decoiler

shutter door roll forming

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

a. Coil inner diameter: 450-550mm

b. Coil max width: 300mm
c. Max carrying capacity: 3000kg

(you can choose this part with Electric or hydraulic)

2. Entry leveling and punching dots


This part will level coil to make sure it is neat clean and straight.

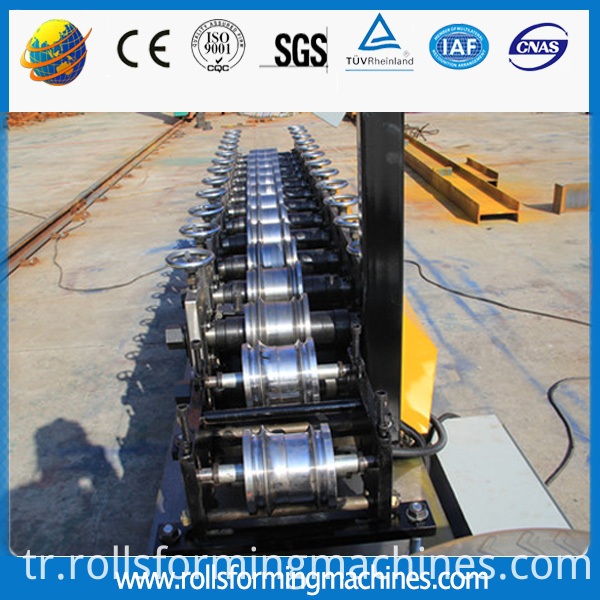

3. Roll forming machine

shutter door roll forming

shutter door roll forming

a. Number of forming steps: 14 stations

b. Shaft material: 45# steel with quenched treatment, precision machined,

The diameter: ¢56mm

c. Roller material: bearing steel with quenched treatment

d. Transport: by gear

e. Forming speed: 10-15m/min
f. Motor:5.5kw

g.Voltage:380v, 50Hz,3 phase

h. Structure: independent stand

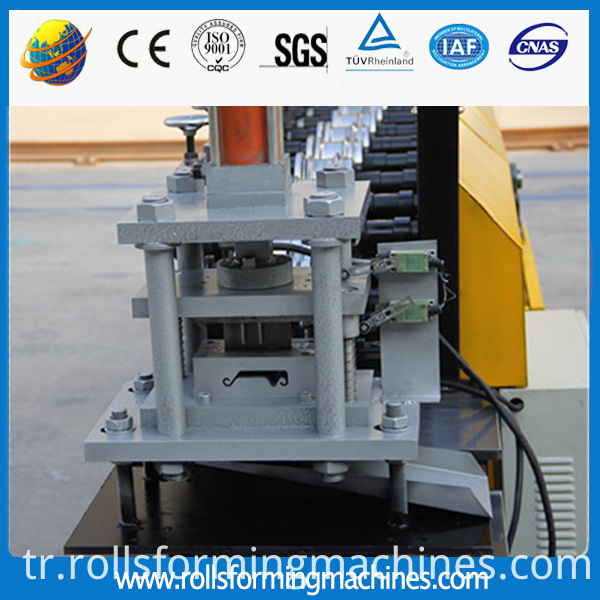

4. Shearing system

shutter door roll forming


shutter door roll forming


The material of blade: Cr12Mov, Hardening HRC 58-62℃

Length Tolerance:3m±1.5mm

5. Hydraulic station

shutter door roll forming

Hydraulic motor Power: 3kw

Hydraulic oil: 46#

Hydraulic pressure : 12Mpa


6. PLC station

shutter door roll forming

PLC control system, we will take Panasonic or you can specify the one you like. Different with normal machine, PLC programmed will add servo cutting saw control parameters.

7. Run out table

It adopts welded steel and supported roller to transmit the products.


1.Processing flow diagram of machine

Manual Decoiler→ Feeding material into machine →Roll forming machine →Measure length →Punch the lock holes→Hydraulic cutting →Finished Products


2. Technical parameters

Material

Raw material

Galvanized

Thickness

0.8mm

Manual

decoiler

Inner Diameter:450-550mm

Expand by manual

Outer Diameter: max 1500mm

Max Coil width:300mm

Capacity: 1.5T

Main Forming

machine

Forming steps

12 rollers

Shaft diameter

50mm

Design type

Middle plate

Machine frame

Memorial arch

roller material

GCr12MoV steel

shaft material

45# steel with tempering

Work speed

0-12m/min

Transport

By gear

Power of main machine

5.5kw

Type of cutting

Hydraulic

Cutting tolerance

±1mm

Cutter

Gcr12

Punch mould

Gcr12

Working pressure

20MPA

Hydraulic

system

Hydraulic oil

46#

Hydraulic power

4kw

Cutting length

As required

No distorting or wasting. High level safety factor.

Control Device

control

By PLC

PLC language

English and Chinese (or as required)

Touch screen

Delta

Function

Automatic length and quantity measurement

Other

Spare part

Weight

About 3.8 ton

Dimension

5200*800*1400 (mm) L x W x H

Main body color

Main body color

Voltage

380v/50hz/3ph(or as required)


shutter door roll forming


The shutter door machine pictures 2





Looking for ideal Roller Door Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Roll Up Door Forming Machine are quality guaranteed. We are China Origin Factory of Roll Up Shutter Door Machine. If you have any question, please feel free to contact us.

Product Categories : Roller Shutter Door Forming Machine
