Zhongtuo Roll Forming Machinery Co., ltd

Roof Tiles Machine South Africa, Steel Plate Rolling Machine
Roof Tiles Machine South Africa, Steel Plate Rolling Machine
Roof Tiles Machine South Africa, Steel Plate Rolling Machine
Roof Tiles Machine South Africa, Steel Plate Rolling Machine

Roof Tiles Machine South Africa, Steel Plate Rolling Machine

Unit Price: USD 10500 - 20800 / Set/Sets
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-004-117

Additional Info

    Packaging: nude packing

    Productivity: 30 sets per month

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: cangzhou

    Supply Ability: 30 sets per month

    Certificate: CE ISO9001

Product Description

Roof Tiles Machine South Africa, Steel Plate Rolling Machine

Roof Tiles Machine South Africa is widely using in all kinds of civil buildings, including stadium, garage, villa and so on.


Drawings of roofing tile:

reference T tile

Material using in Roof Tiles Machine South Africa

Processing material: colored steel plate, galvanized plate.

Material thickness:0.3-0.8 mm

Material hardness: 195 mpa---350 mpa

Coverage width: 900 mm

Coil width: 1200 mm

Forming speed: 8-12 m/min

Working flow of Roof Tiles Machine South Africa:

Uncoiler system:

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Loading capacity:5T

Uncoiling width:1000 mm

Inner diameter: 450-550 mm.

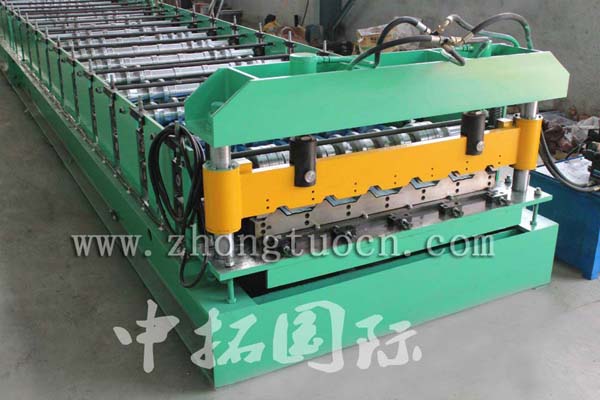

Main machine for roll forming:

Main specification of this parts:

Control System: PLC inverter

Main Frame: 350mm H-beam

Main Power:5.5kw

Hydraulic Power:4kw

Power Supply:380V, 3-Phase,50Hz

Forming Speed:8-12m/min

Roller Station:13 stands

Diameter of Shaft: 80mm, hardening and tempering HRC40-45 ℃

Frame Thickness:0.3--0.8mm

Material of Cutter: GCR12

Roller: 45# plating Cr , thickness of Cr 0.05-0.06mm, quenching HRC58-60 ℃

Total Weight:4.5T

Brand of Motor: mengniu

Cutting Machinism:

It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.

Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine.

Stop to cut , Post cut cutting length tolerance: ±2mm

Cutting tool material: GCr12 with quenched treatment 58-62℃

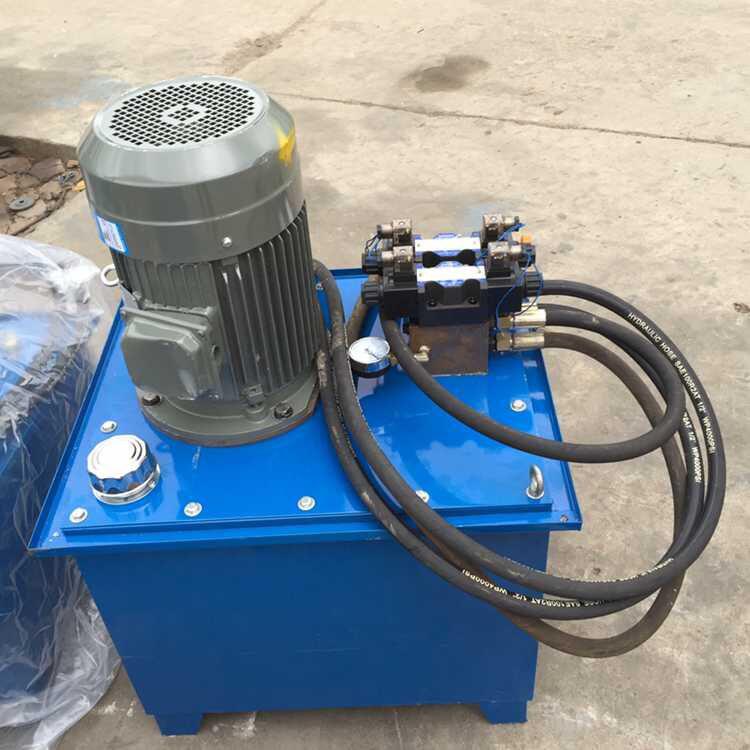

Hydraulic system

hydraulic station

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

Match equipment: a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.

Power of the oil pump: 4kw Hydraulic oil: 46#

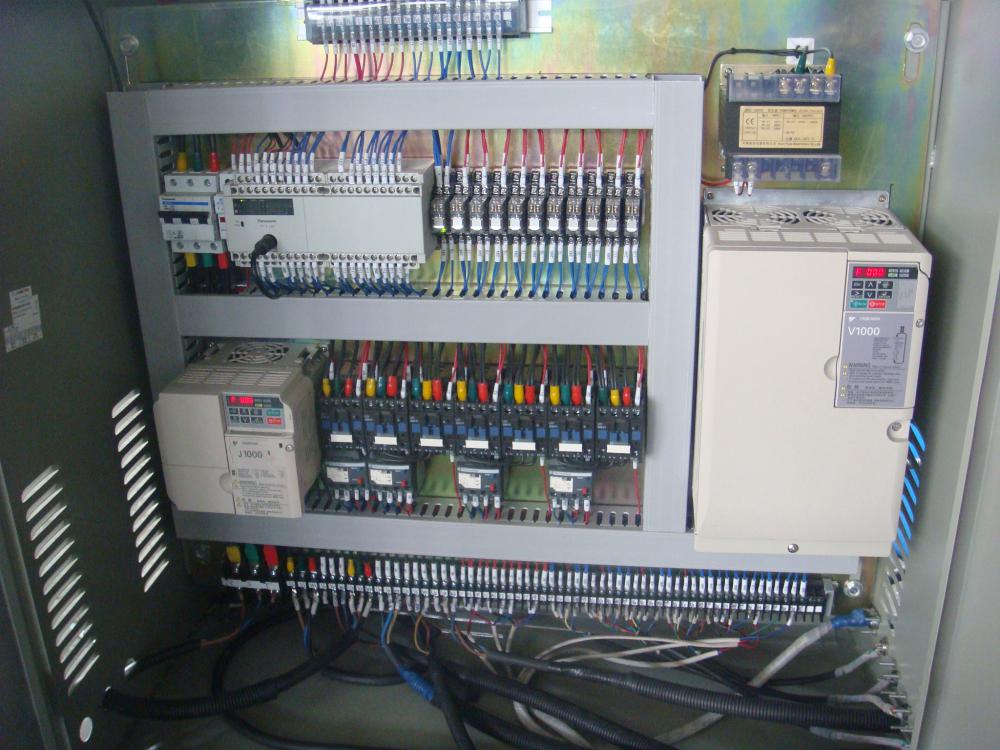

Computer control cabinet:

electric controlling system tile forming machine

It adopts Delta PLC to control. The target piece length is adjustable and digit of it can be adjusted.

Computed mode has two modes: automatic and manual one.

The system is easy to operate and use.

Processing precision : within 1.00mm

It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.


900 Tile Forming Machine, Steel Roofing Machine

One counter gauges length, pulses, and decides length

Runout table:

3 m/set with 2 sets

Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid

by T/T after inspection by buyer in seller`s factory while before delivery.

Delivery: 30 working days after receipt of advance payment

Service: we sent technician to your country to fix the machine.

The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary50USD/day.

Warranty: 12 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee.

Looking for ideal Roof Tiles Machine South Africa Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Plate Rolling Machine are quality guaranteed. We are China Origin Factory of Roof Machine South Africa. If you have any question, please feel free to contact us.

Product Categories : Roofing Sheet Roll Forming Machine > Roof and Wall Panel Roll Forming Machine
